Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine
| Nguồn gốc | Trung Quốc |
|---|---|
| Hàng hiệu | DIXUN |
| Chứng nhận | CE & ISO 9001:2015 |
| Số mô hình | DX-15000T |
| Số lượng đặt hàng tối thiểu | một bộ |
| chi tiết đóng gói | Các phụ tùng và tủ điều khiển sẽ được đựng trong hộp gỗ. Máy chính là đóng gói khỏa thân. Nó cần một |
| Thời gian giao hàng | 30 ngày làm việc |
| Khả năng cung cấp | 5 bộ mỗi tháng |
Thông tin chi tiết sản phẩm
| Tên sản phẩm | Máy vẽ dây thép | đường kính dây đầu vào | 6-12MM |
|---|---|---|---|
| Đường kính dây ra | 4-11mm | Tốc độ sản xuất | 180m mỗi phút |
| Công suất động cơ chính | 55KW | Công suất động cơ dây cuộn | 11kw |
| Trọng lượng máy | 5,5t | Diện tích sàn yêu cầu | 20*4m |
| Trọng lượng dây cuộn | 1T hoặc 2T | Chất liệu dây | Thép cacbon thấp |
| Làm nổi bật | Steel Wire Drawing Machine with warranty,Cold Rolling Steel Bar Machine,Ribbed Steel Wire Drawing Machine |
||
Mô tả sản phẩm
Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine
Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Introduction
The cold rolling steel bar ribbed machine is to roll surface of steel round bar to form three ribs rebar.
Raw material is hot-rolled low carbon steel wire rod
Usage: This production line is mainly to make 6--12mm reinforcing steel bars with three-side ribs. The finished product is widely used in highway, road, city planning and construction works.
Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Advantages
1. This device adopts PLC touch screen numerical control system to make the operation easier.
2. The production line adopts the most advanced international frequency conversion and servo technology or independent frequency conversion control technology, and it effectively protects the power transmission system and equipment from damage. It maximizes the service life of the machine. It can save electricity 30-40%, the maximum line speed can reach 190 meters, increase production efficiency by more than 40%.
3. We adopt self-developed reducer as the national patented product, which is the fastest speed in China, simplifies the structure of the production line, and makes the equipment more reasonable and compact. (The speed reducer between the main reducer and the main rolling mill is omitted and the deceleration is reduced. Due to the long transmission distance of the machine and many problems connecting the flanges, it effectively improves the transmission efficiency by more than 30%, and improves the stability of the equipment by more than 60%. It effectively improves the production efficiency of the equipment.
Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Feature:
Gearbox Reducer, large torque, low noise, durable.
Advanced frequency inverter technology, can save 40-60% of electricity consumption.
The production speed can be up to 120 meters per minute, improve production efficiency.
Technology applied on the vibration aging process, eliminating the pre-stressing.
Process:
Raw material→cannon pay-off stand→Sheller→Dry Lubrication→ reduce wire diameter→ rolling mill machine for ribbing→Coiling
Technical Parameters of Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine
| Model | DX-15000T | DX-20000T | DX-30000T |
| Inlet Wire Diameter | 5.0-13.5mm | 6.0-14.0mm | 6.5-16mm |
| Outlet Wire Diameter | 4.0-12.0mm | 4.0-13.0mm | 4.0-14.0mm |
| Main Machine Power | 55KW | 66KW | 150KW |
| Take- up Power | 11KW | 11KW or 18.5kw | 11KW or 18.5KW |
| Cutting power | 7.5KW | 7.5KW | 11KW |
| Cutting Length | 1-12m | 1-12m | 1-12m |
| Cutting Error | ±5mm | ±5mm | ±5mm |
| Working Speed | 100 m/min | 120 m/min | 180 m/min |
| Control Way | Frequency Control | ||
| Way of Taking-up Wire | Spool Take-up Machine (1 tons or 2 tons) | ||
| Floor space | 35*4m(L*W) | 35*4m(L*W) | 35*4m(L*W) |
Application of Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine
Widely used in concrete structures such as floor slabs, floors, beams, and columns. The three-sided ribbed design significantly enhances the bond strength with concrete, improving overall load-bearing capacity and structural stability.
Suitable for precast slabs, precast beams, and lightweight structural components. Features high tensile strength, uniform rib shape, and stable stress performance, facilitating standardized and large-scale production.
Commonly used in residential buildings, commercial buildings, and various infrastructure projects. While meeting structural strength requirements, it effectively reduces steel consumption, balancing safety and economy.

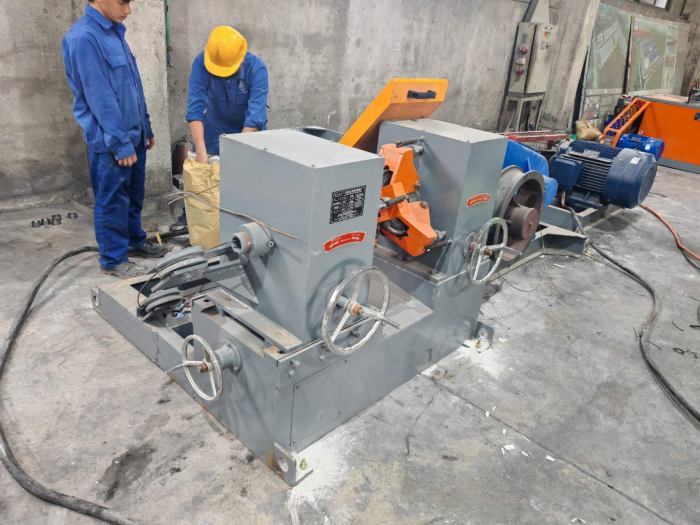

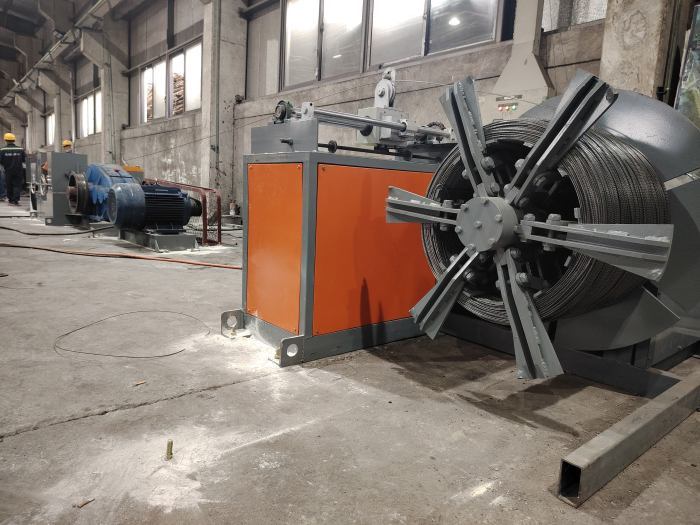

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Photos
