Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine

Nguồn gốc Trung Quốc
Hàng hiệu DIXUN
Chứng nhận CE & ISO 9001:2015
Số mô hình DX-2500B
Số lượng đặt hàng tối thiểu một bộ
chi tiết đóng gói Các phụ tùng và tủ điều khiển sẽ được đựng trong hộp gỗ. Máy chính là đóng gói khỏa thân. Nó cần một
Thời gian giao hàng 30 ngày làm việc
Khả năng cung cấp 5 bộ mỗi tháng
Thông tin chi tiết sản phẩm
Tên sản phẩm Máy hàn lưới hàng rào Hệ thống điều khiển PLC+Màn hình cảm ứng
Không gian dây dọc 50-200mm Không gian dây chéo 50-200mm
hiện hành 200A kiểu hoàn toàn tự động
Đường kính dây 2,8-4,5mm Động cơ chính 5,5KW
Tốc độ hàn 50-75 lần/phút Cách sử dụng Hàng rào sản phẩm bảo vệ đường cao tốc và đường sắt
Làm nổi bật

50x50mm galvanized fence mesh machine

,

3mm wire fence welding machine

,

galvanized wire mesh welding equipment

Để lại lời nhắn
Mô tả sản phẩm

Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine





Introduction of Fence Mesh Welding Machine



The fence mesh welding machine is our factory independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Welding wire diameter range of the device is 2.5-5.0 mm, the mesh size is 50-200 mm, stepless adjustable. The maximum width of the welding wire mesh is 2500 mm.



Features of Fence Mesh Welding Machine



1. The whole machine is controlled by man-machine interface +plc programming control mode, with a high degree of automation.
2. It can weld galvanized wire, cold drawn wire, black wire and other materials, with wide adaptability.
3. According to the capacitance of users, one-time or fractional welding can be adopted, with great flexibility.
4. The unit is designed as a separable structure to facilitate specification adjustment and maintenance.
5. The transformer adopts forced water cooling and is equipped with flow protection device, so that the unit can work reliably and continuously.
6. The welding pressure shall be uniform to ensure the quality of all welding joints.
7. The horizontal bar blanking device adopts stepping motor for automatic feeding to reduce labor intensity and improve efficiency.
8. The vertical dimension of the network can be changed through screen input to meet the needs of multi specification changes of the engineering network.
9. The horizontal bar blanking position is equipped with a magnetic material throwing mechanism, which has fast blanking speed and high production efficiency.
10. The electrode is equipped with a device in place to ensure reliable and accurate blanking of the transverse reinforcement.



Detailed Introduction of Fence Mesh Welding Machine



1. Straightening wheel system.
The wire will pass through the straightening wheel system, which can make the wire more straight and smooth, and ensure the flatness and beauty of the welded wire mesh.



2. Cross wire feeding system.
The cross wire feeding system is independently designed and improved by our company, with fast and stable operation.



3. Welding electrode.
All welding electrodes are made of high chromium copper alloy, which is wear-resistant and high temperature resistant, extending the service life.



4. Pull mesh motor.
The mesh pulling motor uses a servo motor. The position movement is very fast and accurate, ensuring that each grid size is accurate and beautiful.



5. Mesh cutting machine.
The machine is equipped with a mesh cutting machine, which can set different cutting lengths on the screen to facilitate customers to produce different wire mesh sizes.



Advantages of Fence Mesh Welding Machine



1. Much easier machine maintenance, less machine problem.
2. Same welding pressure for each welding point, guarantee welding quality.
3. Enough welding power to weld max.5mm rebar.
4. The welding speed can be up to max.60-75 times/min.
5. For the welding electrode no need to work, only need to disconnect the electromagnetic valve.
6. Precision pressure reduction valve, ±0.5% error. High flow.



Technical Details of Fence Mesh Welding Machine



Model DX-2500B
Wire diameter 2.5-5.0mm
Width of fence mesh Max. 2500mm
Length of fence mesh Max. 3000mm
Longitudinal wire space 50-200mm
Cross wire space 50-200mm
Number of electrode 51pcs
Welding transformer 160kva*6pcs
Main motor 5.5kw
Production capacity 120 pcs per hour



Applications of Fence Mesh



Building fences: Used for fences and safety protection on construction sites to ensure the safety and order of the construction site and prevent unauthorized personnel from entering dangerous areas.
Public places: Often used in parks, schools, stations, etc., to delineate areas and guide the flow of people, to ensure the safety and order of people.
Agricultural fields: Widely used in livestock enclosures and farmland fences to ensure the safety of crops and livestock, and to prevent wild animals and thieves.
Road traffic: As a crash protection facility, to protect people and vehicles from accidental injuries, installed on roads, highways and bridges.



Photos of Fence Mesh Welding Machine

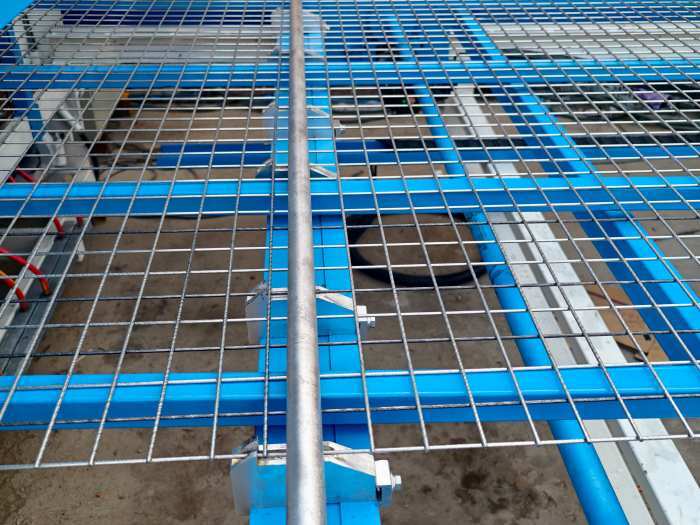

Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine 0

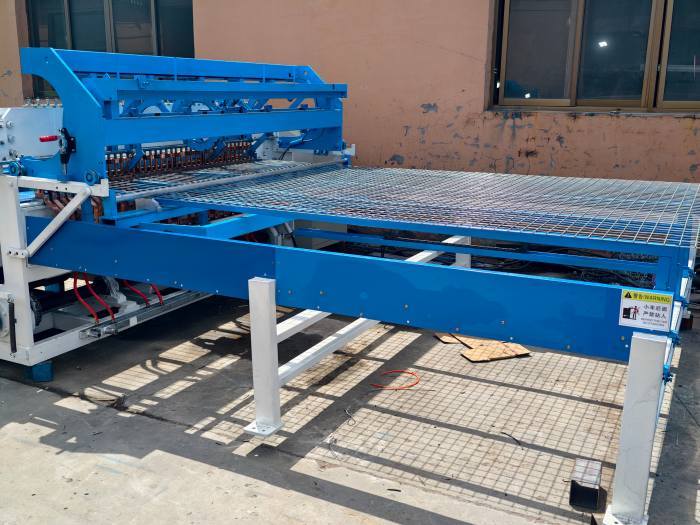

Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine 1

Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine 2

Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine 3

Mesh Size 50*50mm Galvanized Wire 3mm Fence Mesh Welding Machine 4
